Connection profiles

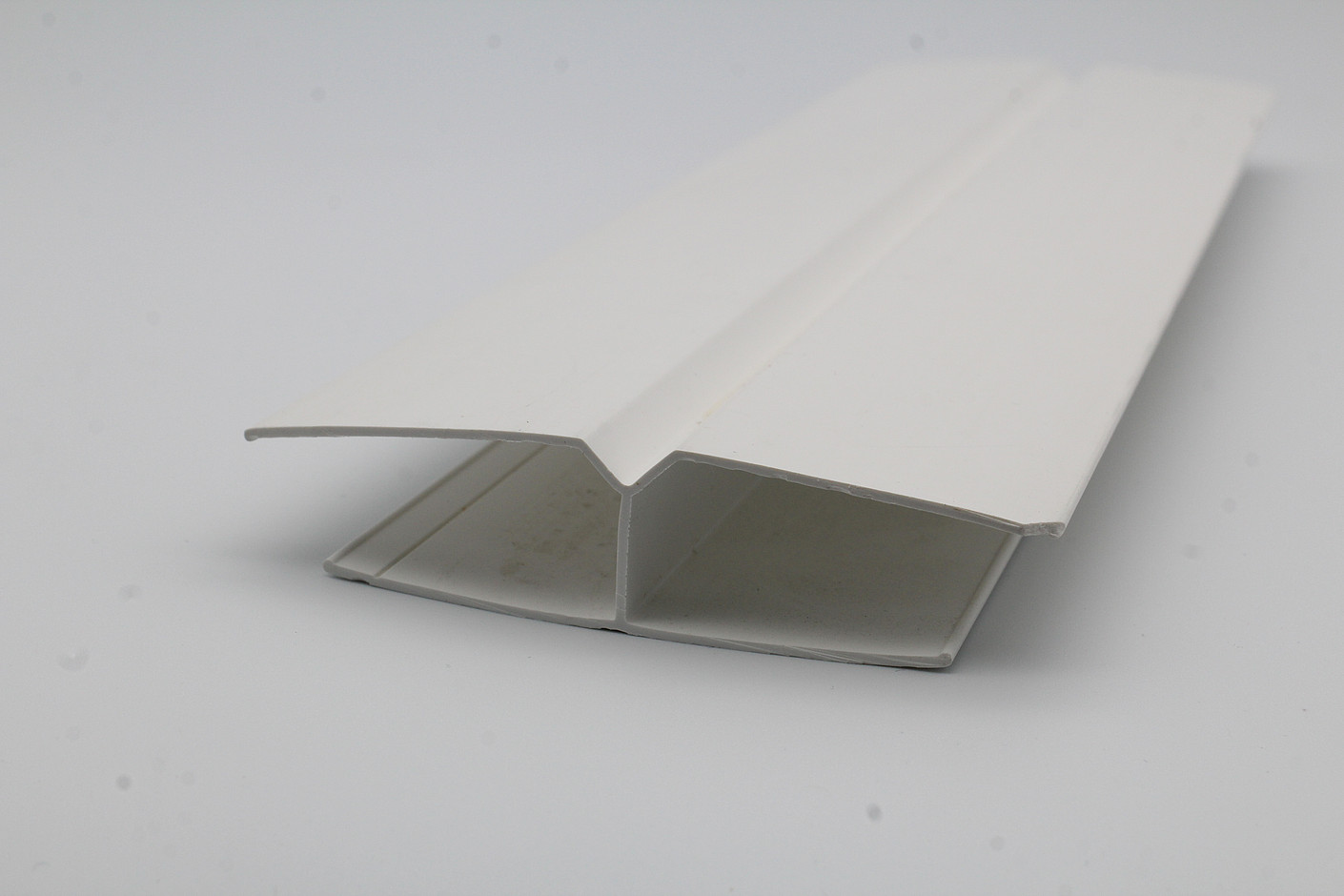

SPECIFICATIONS
MaterialsPVC
Extrusion speed3-10 m/min
Dimensions of profile90x21 mm
Main wall thickness1.2 mm
Meter weight508 g/m

MACHINERY DATA
ExtrudersTwin-screw extruder
Calibration tableTEC.LINE
ToolingDie / Dry calibrator / Water bath
Haul-offBelt haul-off / Caterpillar-haul-off
In-line profile processingStamping
Cutting deviceCP100 / Cutter / Saw
StackingTipping table
SPECIFICATIONS
MaterialsPVC
Extrusion speed3-10 m/min
Dimensions of profile47x21 mm
Main wall thickness1.2 mm
Meter weight115 g/m

MACHINERY DATA
ExtrudersTwin-screw extruder
Calibration tableTEC.LINE
ToolingDie / Dry calibrator / Water bath
Cutting deviceBelt haul-off / Caterpillar-haul-off
In-line profile processingStamping
Cutting deviceCP100 / Cutter / Saw
StackingTipping table
SPECIFICATIONS
MaterialsPVC
Extrusion speed3-10 m/min
Dimensions of profile41x40 mm
Main wall thickness1.2 mm
Meter weight185 g/m

MACHINERY DATA
ExtrudersTwin-screw extruder
Calibration tableTEC.LINE
ToolingDie / Dry calibrator / Water bath
Haul-offBelt haul-off / Caterpillar-haul-off
In-line profile processingStamping
Cutting deviceCP100 / Cutter / Saw
StackingTipping table
SPECIFICATIONS
MaterialsPVC
Extrusion speed3-10 m/min
Dimensions of profile21x50 mm
Main wall thickness1.2 mm
Meter weight190 g/m

MACHINERY DATA
ExtrudersTwin-screw extruder
Calibration tableTEC.LINE
ToolingDie / Dry calibrator / Water bath
Haul-offBelt haul-off / Caterpillar-haul-off
In-line profile processingStamping
Cutting deviceCP100 / Cutter / Saw
StackingTipping table
SPECIFICATIONS
MaterialsPVC
Extrusion speed3-10 m/min
Dimensions of profile21x50 mm
Main wall thickness1.2 mm
Meter weight190 g/m

MACHINERY DATA
ExtrudersTwin-screw extruder
Calibration tableTEC.LINE
ToolingDie / Dry calibrator / Water bath
Haul-offBelt haul-off / Caterpillar-haul-off
In-line profile processingStamping
Cutting deviceCP100 / Cutter / Saw
StackingTipping table

Recommended Upgrades

MEASUREMENT SYSTEM

  • Inline quality data acquisition and possibility of automatic control with SHAPE.MATIC or WALL.MATIC
2022-09-20_09_44_01-2022-09-20_09_42_27-flyer_easywall_verkleidungsprofil_de.pdf_and_6_more_pages_-_.png

Verkleidungsprofile
