| SPECIFICATION | |
| Materials | PVC / PVC foam |
| Extrusion speed | 2-3 m/min (2x) |

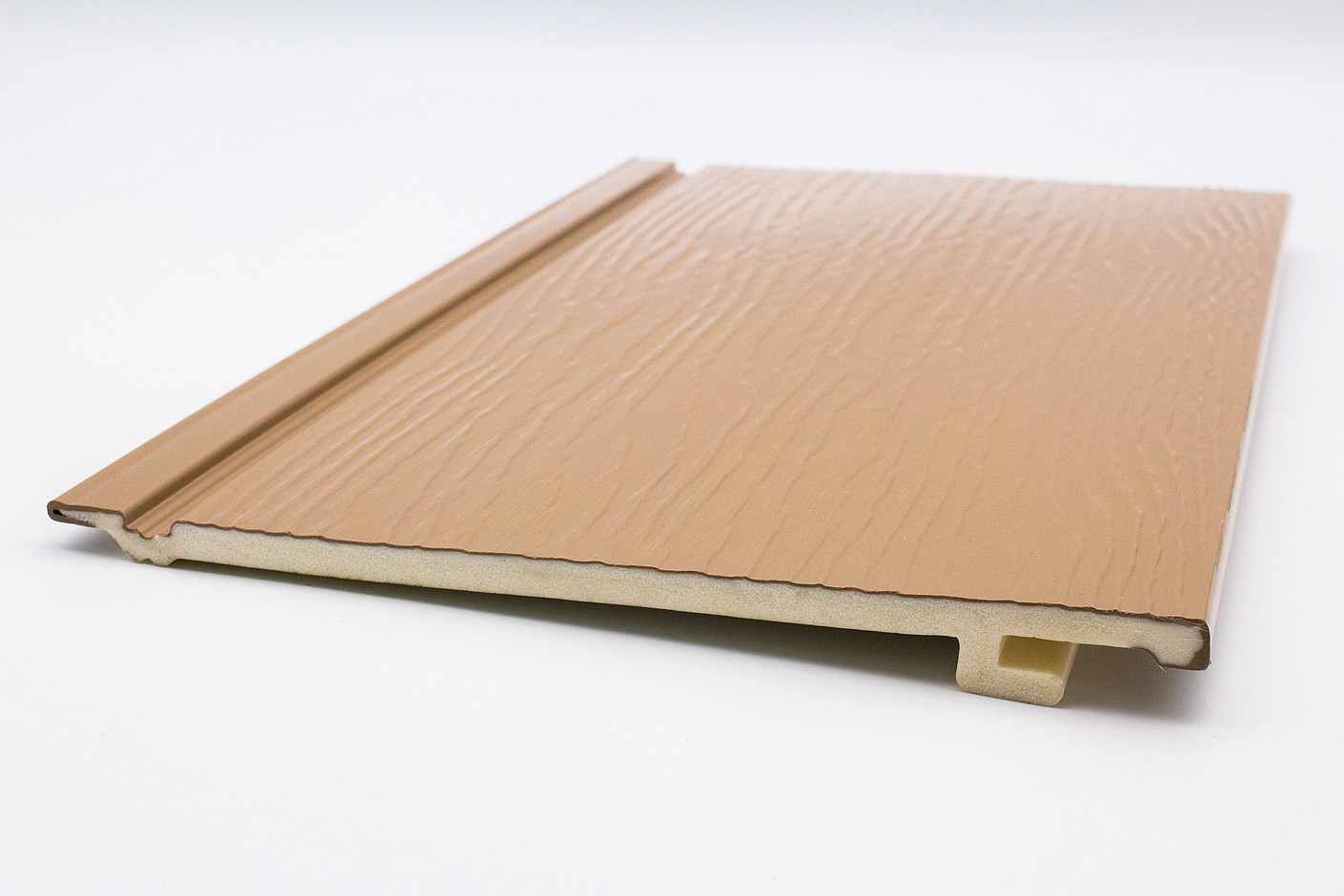

| Dimensions of profile | 203x16 mm |
| Main wall thickness | 8 mm |
| Meter weight | 727 g/m (2x) |
| MACHINERY DATA | |
| Extruders | Twin-screw extruder / Co-extruder |
| Calibration table | RED.LINE 600 |
| Tooling | Die/ Dry calibrator / Water bath |
| Haul-off | Caterpillar-haul-off |
| In-line profile processing | Foiling / Embossing station / Stamping |
| Cutting device | RED.CUT Disc |
| Stacking | Sliding table |
