| SPECIFICATIONS | |
| Materials | PC Makrolon |
| Extrusion speed | 2-5 m/min |

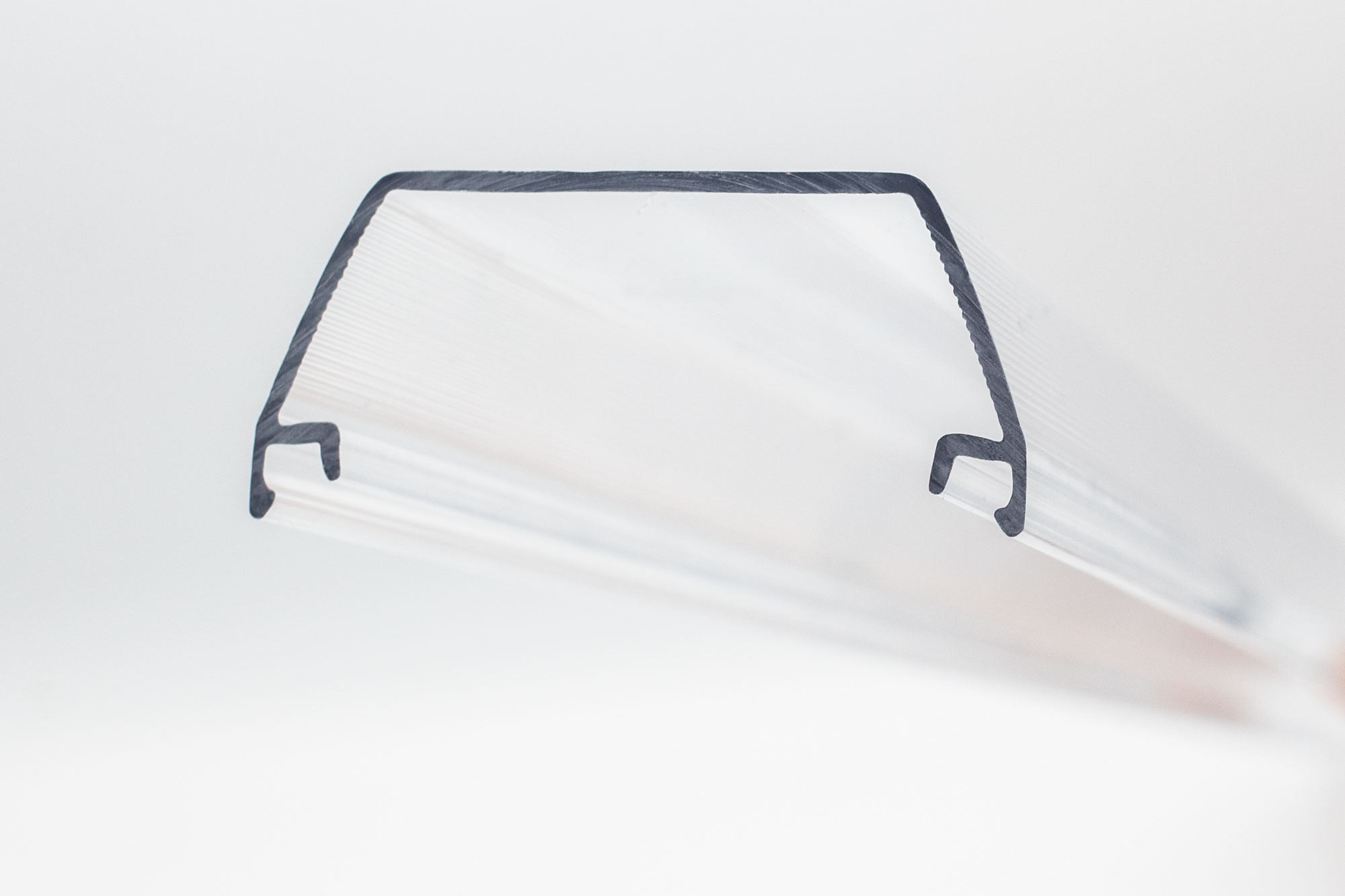

| Dimensions of profile | 60x27 mm |
| Main wall thickness | 1.5 mm |
| Meter weight | 201 g/m |
| MACHINERY DATA | |
| Extruders | Einschneckenextruder |
| Calibration table | RED.LINE - Tempering 104 °F |

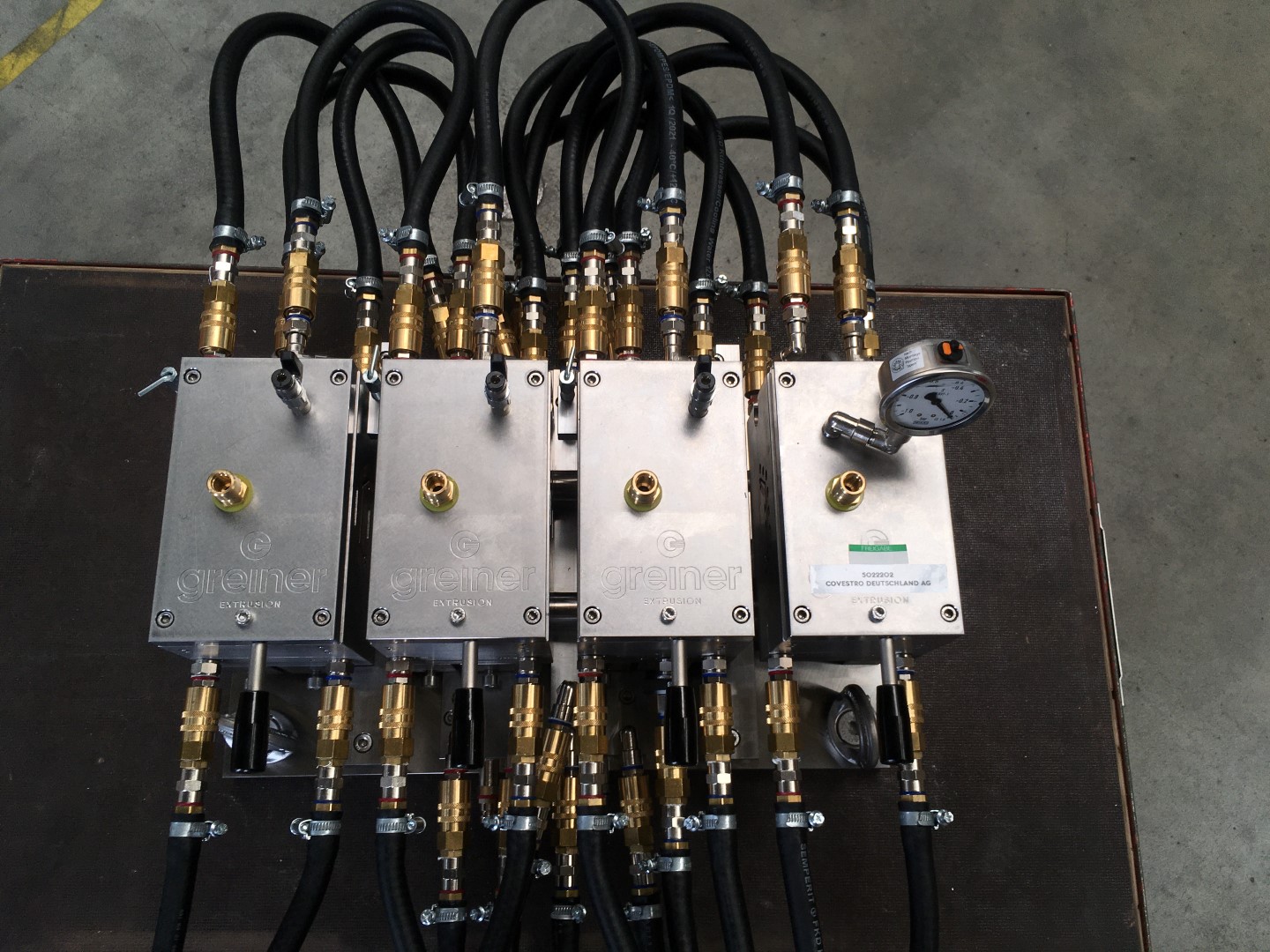

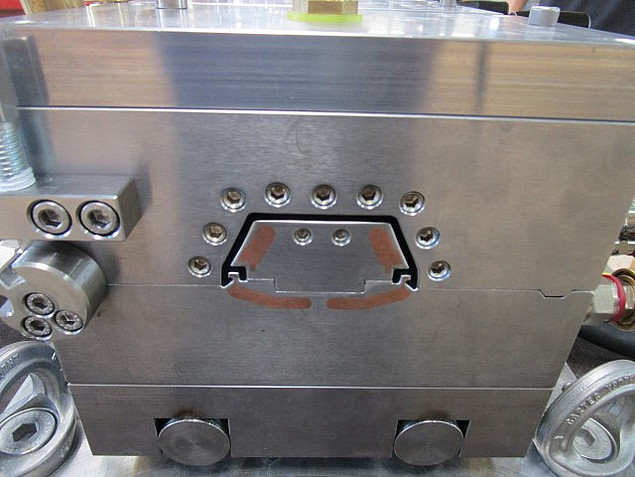

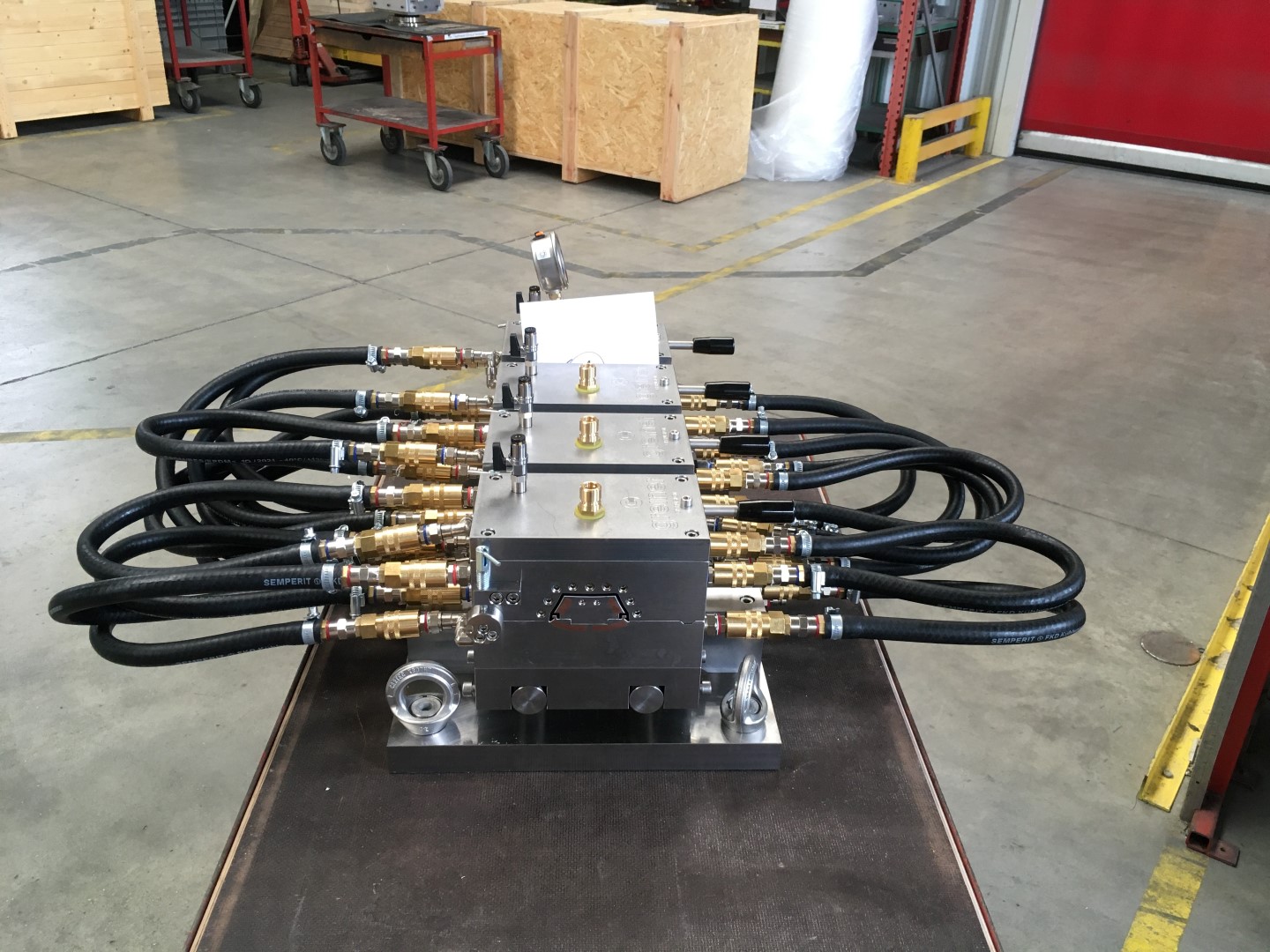

| Tooling | Die / Dry calibrator / Water bath |
| Haul-off | Caterpillar-haul-off / belt-haul-off |
| Cutting device | Saw / Cutter |
Recommended Upgrades
FLOW.CONTROL / FLOW.MATIC
- Raw material savings - production with reduced profile weight
- Quality increase and scrap reduction end product - control and automatic regulation of profile function dimensions
MELT PUMP
- For constant mass flow and uniform product quality
MEASUREMENT SYSTEM
- Inline quality data acquisition and possibility of automatic control with SHAPE.MATIC or WALL.MATIC
