SPECIFICATIONS | |
Materials | PVC |
Extrusion speed | 0,9 m / min |

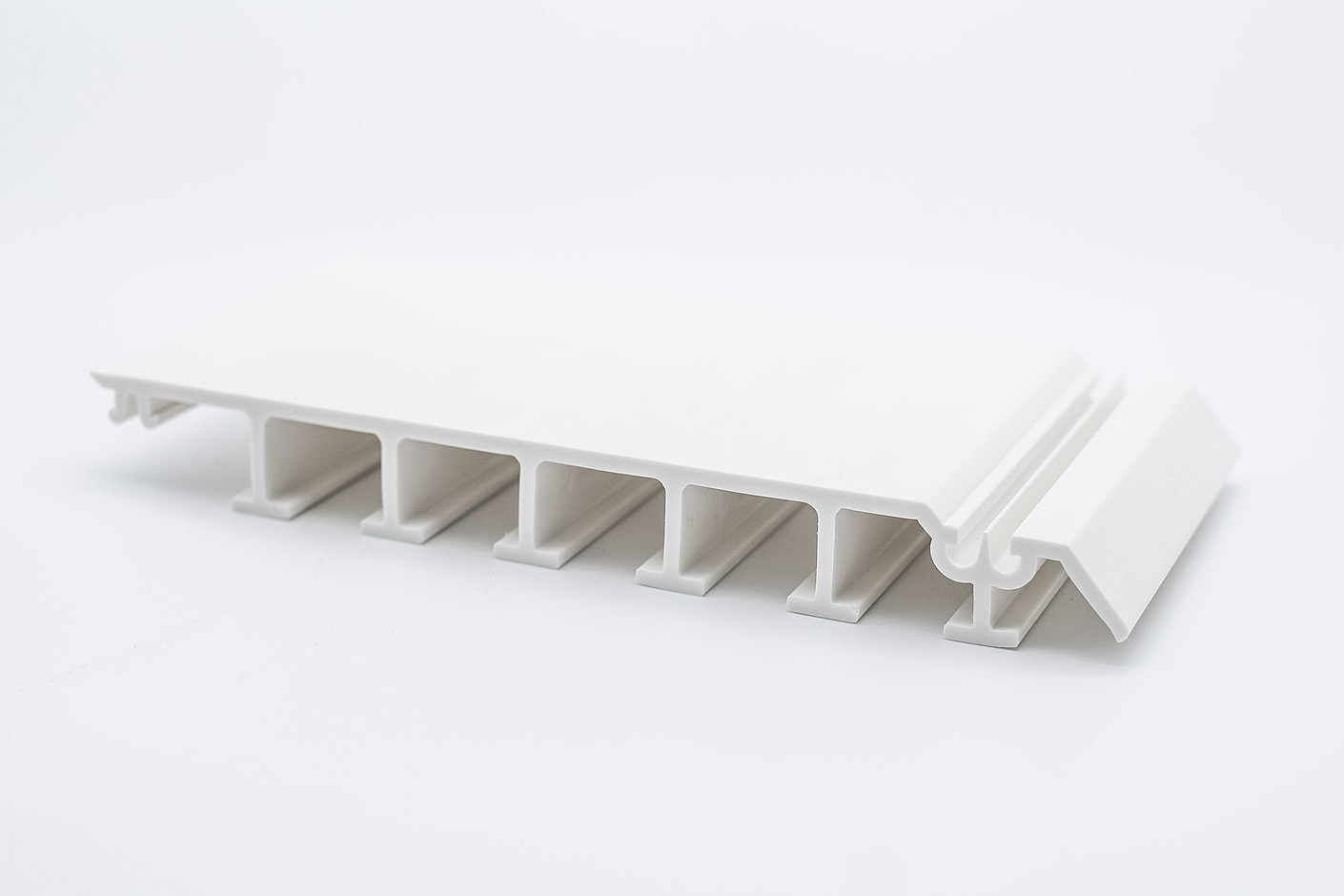

Dimensions of profile | 65x207 mm |
Main wall thickness | 2,9 mm |
Meter weight | 3,391 kg/m |
MACHINERY DATA | |
Extruders | Double-screw extruder |
Calibration table | RED.CAL |
Tooling | Die / Dry calibrator / Vakuum tank |
Haul-off | Caterpillar haul-off |
In-line profile processing | no |
Cutting device | Cutter |
Stacking | Tipping table |
