XXL.TOOLING – the wide profile extrusion tooling

The giant among the tooling systems.

Show hotspots
Tank system
Vacuum tank for hollow chamber profiles, water bath for solid profiles
Tooling system
made from stainless steel
Die
for large profiles up to 1,000 mm wide

From broad window sills to generously-sized panels and massive embankments, XXL.TOOLING is a wide profile extrusion tooling and was specially developed to extrude even the largest profiles with process reliability and precision. For applications with a width of up to 1,000 mm, this stainless steel giant keeps things in shape.

  • Extra-large tooling for profiles measuring up to 1,000 mm
  • High process reliability
  • Made from stainless steel
  • Customised tank system
XXL.TOOLING Düse | Breites Profilextrusionswerkzeug

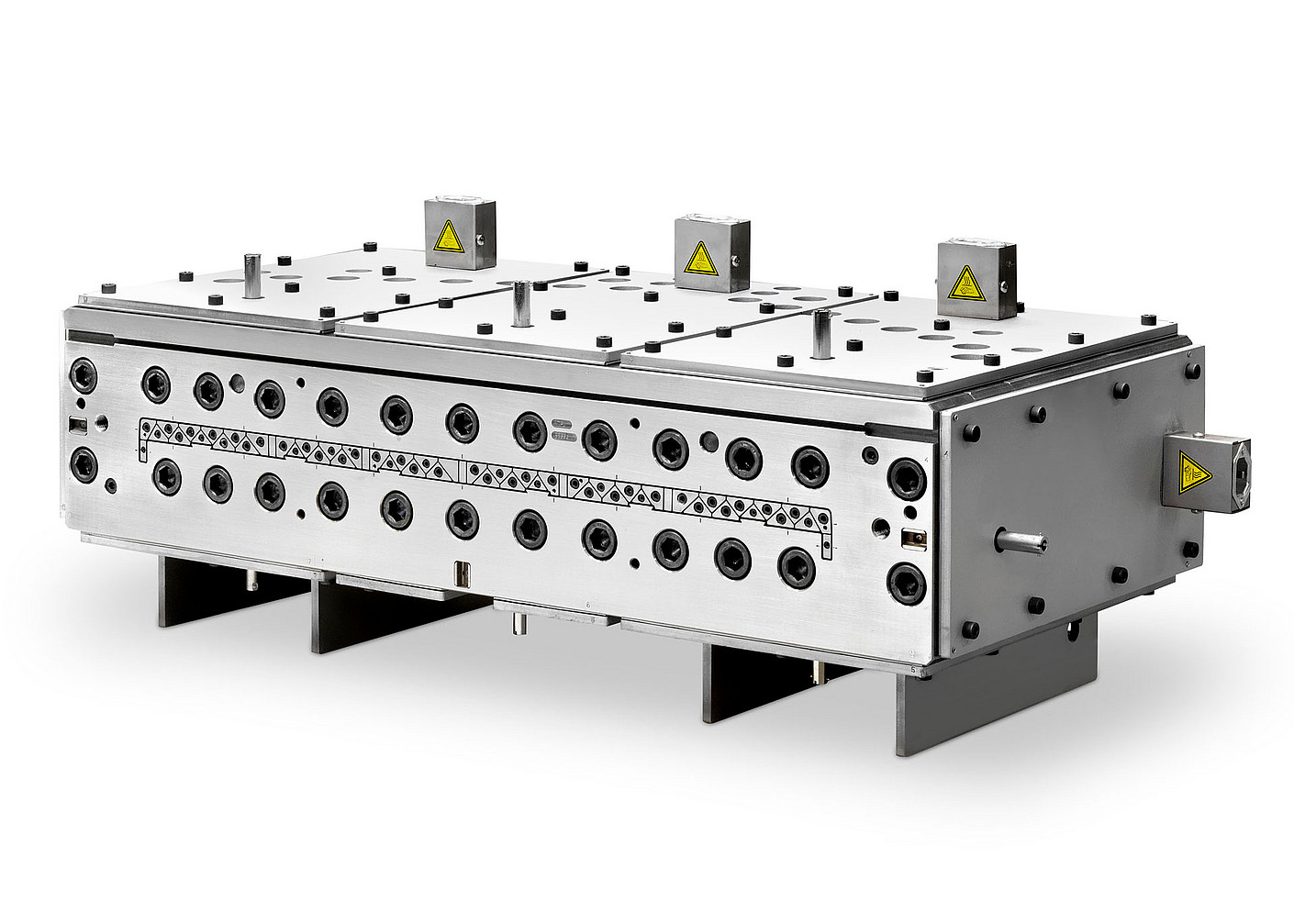

XXL die

The XXL die from Exelliq holds the record in terms of size and brings the most powerful profiles, such as housing profiles or sheet pile walls, into a secure shape.

XXL.TOOLING | Breites Profilextrusionswerkzeug - Greiner Extrusion

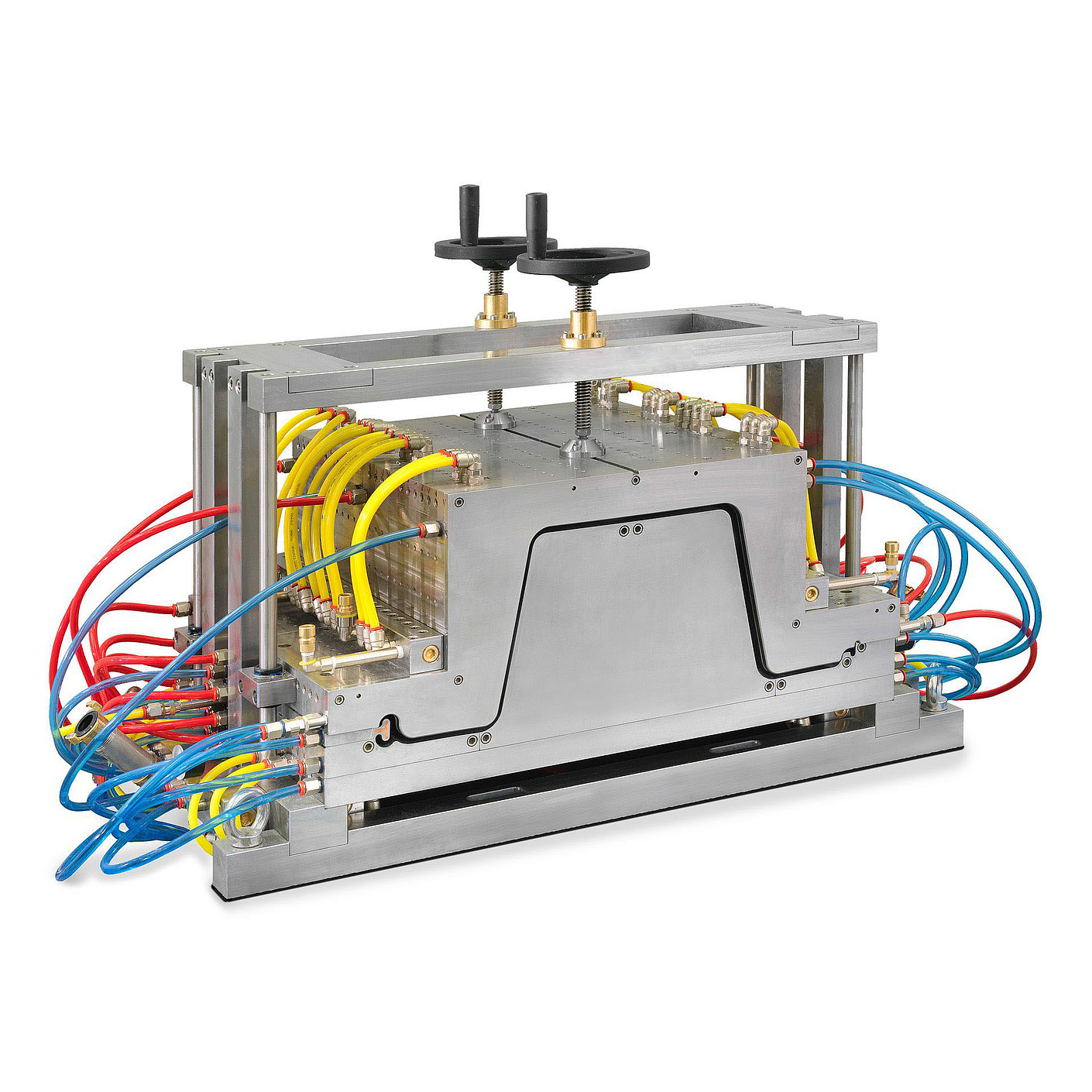

XXL dry calibration

The XXL.TOOLING's large dry calibration is made entirely of stainless steel and, in addition to its process reliability when extruding large profiles, stands out in particularly due to its long service life.

XXL.TOOLING | XL Profilextrusionswerkzeug

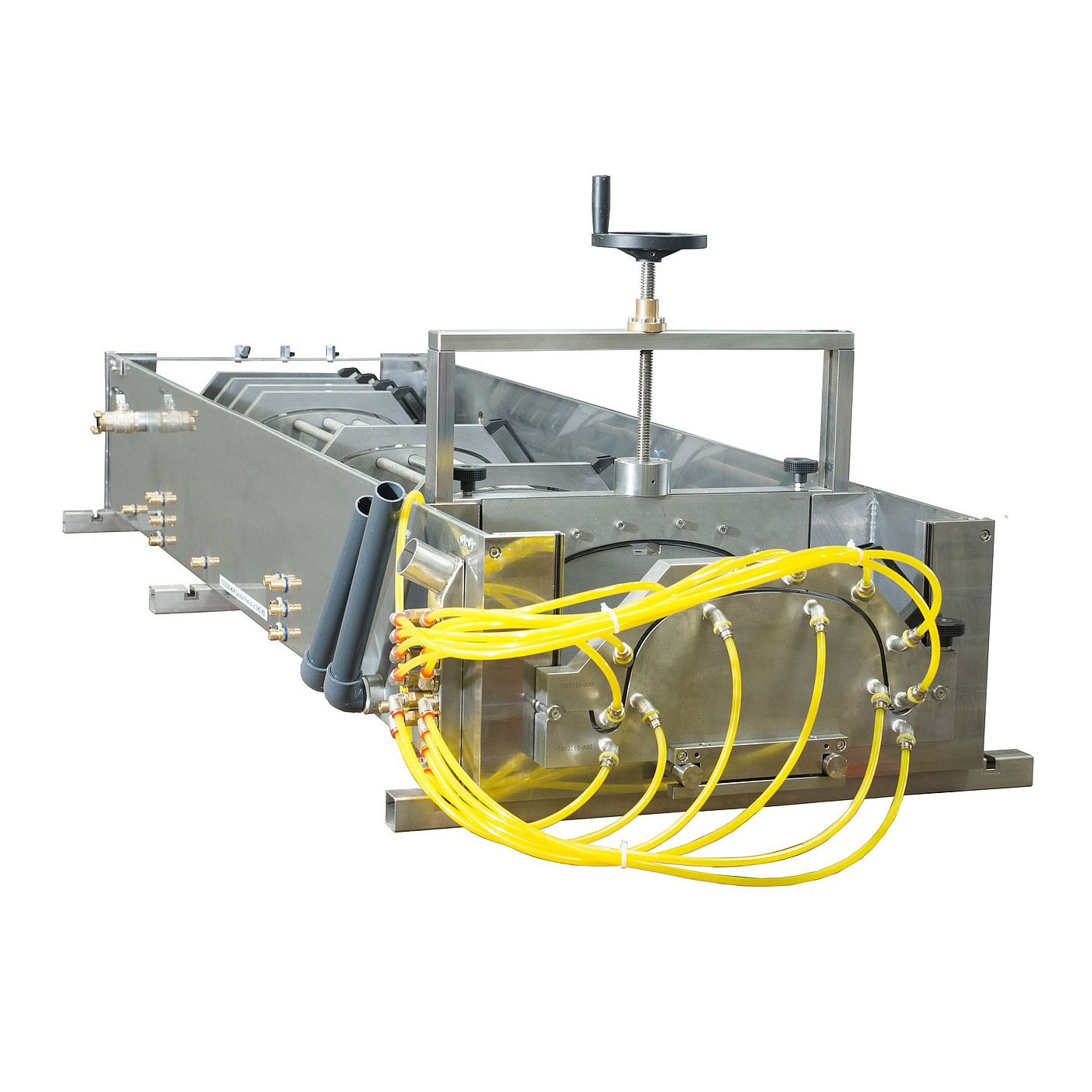

XXL tank system

The tank system of the XXL.TOOLING is individually adapted to the geometry of the profile. A vacuum tank is used for hollow chamber profiles, while a tank with a water bath is used for full profiles.
